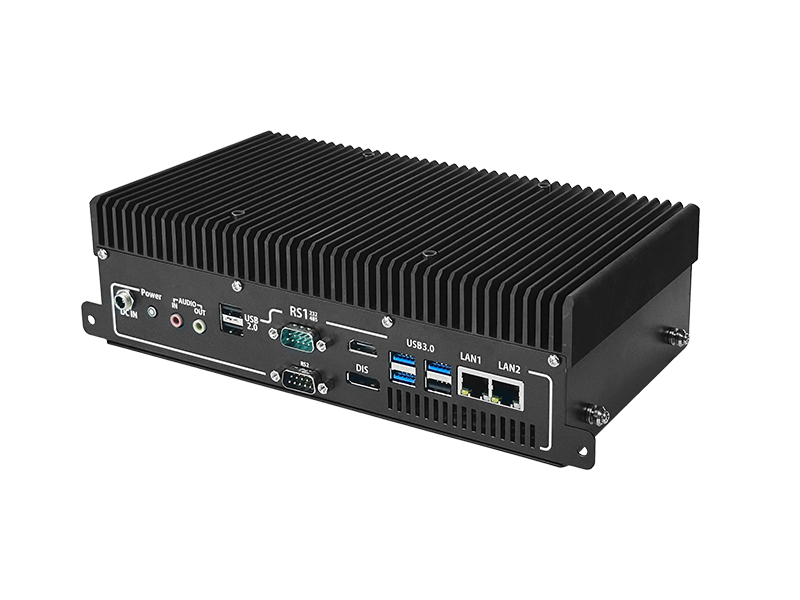

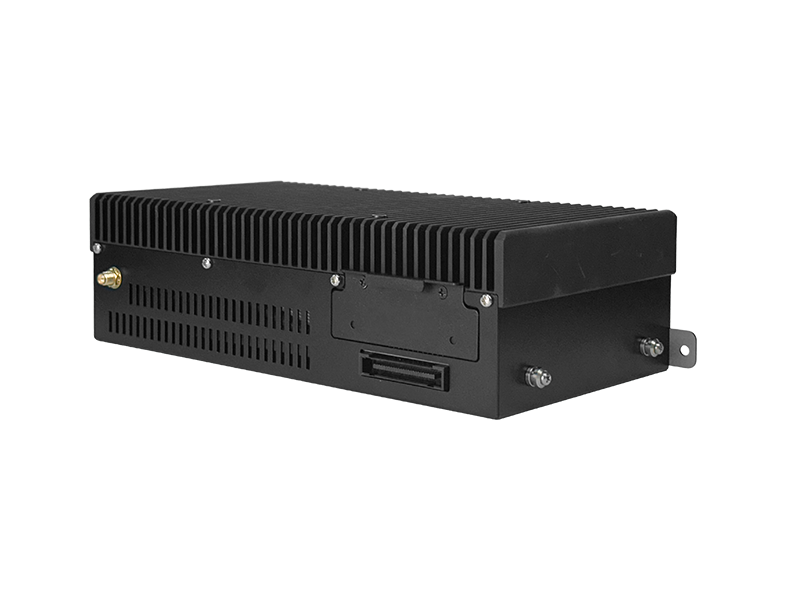

QPI 155U Box PC Module
QPI 155U Box PC Module
Intel® Gen14 Ultra7 155U
- Intel® Core™ Ultra7 155U processor
- NVMe storage for unrivaled performance
- Modularized Design for different application
- 0 to 60 °C operating temp with ambient air
- Variety of I/O ports to suit all connectivity needs
- Over 20 display modules to mix and max.
.jpg)
Unlimited Flexibility
With the unique modular design, system configuration can now be done in house. Swap either the desired panel size or desired system box to achieve quick delivery of your project needs.
Reduced risk of having dead stock in your warehouse. Modularized modules allows you to have maximum control of what you want to keep in stock. Mix and Match according to your needs instead of having waiting for that specific project to appear just for that one system.
With the chance of mix and matching, the sales team can now react immediately and have project sample provided on a timely fashion. No more waiting for the correct system to arrive with increased chance to losing the project.
After Service
Time is Money! You now have the option of quick swapping the modules when system upgrade/maintenance is required. Engineers c
With Hot Swap Pool in place, replacement modules can be provided to ensure that the system can be back up working again instead of waiting on delivery, waiting on repairing.
No more prolonged system down time for your client when you can simply swap the modules to resolve the problems at client side. The team can now focus on providing the best service for the client while replaced modules can be repaired afterwards.
| System Box Module | |
|---|---|
| Processor | Intel® Core™ 14th Generation Ultra7 155U processor |
| System Memory | DDR5 SO-DIMM, Max. 96GB |
| Storage | 1 x 2.5" SATA HDD/ mSATA SSD |
| I/O | USB x 6 (USB 3.0 x 4, USB 2.0 x 2) |
| Ethernet, RJ-45, PCI-e Gbe LAN x 2 | |
| COM x 2 | |
| DisplayPort x 1 | |
| Audio Line in x 1, Line out x 1 | |
| Expansion Interface | M.2 x 1 (Supports NVMe) |
| OS Support | Microsoft Windows 11, Linux |
| Power Requirement | DC-in, +12V~+24V, Wide Range Input |
| Mechanical | |
| Dimension | 128 x 72 x 257 mm |
| System Weight (N.W.) | 2.23 KG |
| Construction | Heavy-duty steel chassis (Black), Aluminum Heatsink |
| Operation Temp. | 32°F ~ 140°F (0°C ~ 60°C) with Ambient Air |
| Storage Temp. | -4°F ~ 176°F (-20°C ~ 80°C) |
| Relative Humidity | 10~90% @40°C, Non-condensing |
| Vibration | 5-17Hz, 0.1" double amplitude peak to peak, 1.5G acceleration peak to peak |
| Shock | 10G acceleration peak to peak (11ms) |
| Qualification | Formal certification CE I FCC Class B |
| Mounting | Panel / VESA 100 / Wall / Clamp Type |
| Optional Order | |
| Memory | DDR4 2GB, DDR4 4GB, DDR4 8GB, DDR4 16GB |
| Storage | 2.5" SATA HDD 500GB~1TB, SSD 16GB~256GB |
| Wifi LAN | RTL8188CUS-BC8-WB |
| Power | DC to Power Terminal Connector |
